Name: Automatic Single Burning Item Test Apparatus SBI Reaction to Fire Testing Equipment for Construction Materials
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF005
Price: 4,905.00 USD
Availability: InStock

Home > Products > Building Material Fire Tester >

Automatic Single Burning Item Test Apparatus SBI Reaction to Fire Testing Equipment for Construction Materials

Automatic SBI fire testing equipment

Single Burning Item test apparatus

Construction materials fire tester

Place of Origin:

China

Brand Name:

YUYANG

Model Number:

YYF005

Request A Quote

Automatic Single Burning Item Test Apparatus SBI Reaction to Fire Testing Equipment for Construction Materials

Product Details

Test Room:

L3000*W3000*H2400(MM)

Ignition Source:

Placed On Trolley Vertical Rectangular Box In The Corner Of The 31 Kw Propane Sandbox Burners(two Equal Sides 0f 250mm,height 80mm)

Exhaust Speed:

0.50 M3 /S~0.65 M 3/ S

Test Room Ambient Temperature Measurement:

K-type Sheathed Thermocouples With Diameter 2mm,ambient Pressure

Test Accuracy::

± 200Pa

Test Room Ambient Temperature Measurement::

K-type Sheathed Thermocouples With Diameter 0.5mm

Temperature Measurement Accuracy:

0.5 ℃

Flue High-precision Pressure Sensor Accuracy:

± 2Pa

Time Recording System Accuracy:

0.1S

Test Time:

1 To 30 Minutes Can Be Set

Highlight:

Automatic SBI fire testing equipment

Single Burning Item test apparatus

Construction materials fire tester

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Delivery Time

7-30 Days

Payment Terms

T/T

Professional SBI Fire Testing Equipment Building Products Reaction to Fire Test Apparatus GB/T 20284 EN 13823

Get Best Price

Automatic Single Burning Item Test Apparatus SBI Reaction to Fire Testing Equipment for Construction Materials

Get Best Price

EN 13823 SBI Test Apparatus for Building Material Fire Performance Testing Single Burning Item Testing Machine

Get Best Price

Building Materials Products Single Burning Item Test Apparatus SBI Fire Testing Equipment EN 13823 Reaction to Fire Tester

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

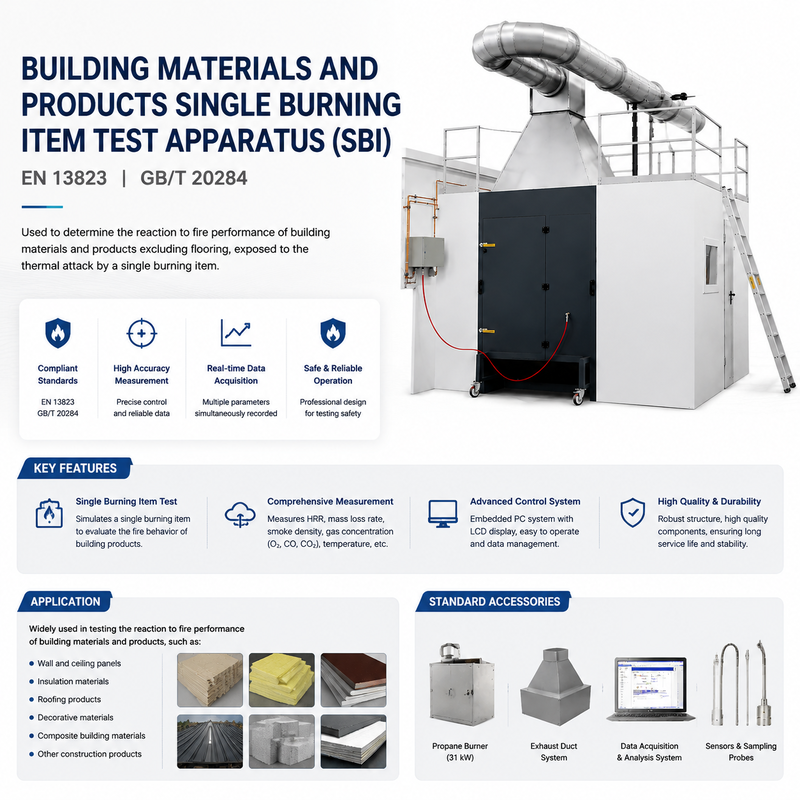

Automatic Single Burning Item Test Apparatus

Professional SBI Reaction to Fire Testing Equipment for Construction Materials

Building Materials and Products Single Burning Item Test Apparatus (SBI)

The SBI test apparatus is a professional fire testing system used to determine the reaction to fire performance of building materials and construction products. The system simulates the thermal attack caused by a single burning item and evaluates the fire behavior of materials under controlled laboratory conditions. It is widely used by fire testing laboratories, certification organizations, research institutes, and building material manufacturers.

Product Highlights

Meets International Fire-Test Standards: EN 13823 (Reaction-to-Fire for building products) and GB/T 20284 Single Burning Item Test
Key Fire-Performance Measurement Items: Heat Release Rate (HRR), smoke density, O₂ / CO / CO₂ gas concentration, temperature, mass loss rate
Powerful Data Acquisition Capabilities: Real-time monitoring, auto-data logging, test curve display, data storage & export, automatic report generation

Testing Principle

A test sample is installed on the trolley inside the test room. A 31 kW propane burner acts as the ignition source and exposes the sample to a controlled flame. During the test, combustion products pass through the exhaust duct where sensors and analyzers collect real-time data.

The system automatically analyzes:

Heat release rate
Smoke production rate
Gas concentration
Temperature change
Mass loss

The final test data can be stored and exported for evaluation.

Technical Specifications

Item	Specification
Applicable Standards	EN 13823 / GB/T 20284
Test Room Dimension	L3000 × W3000 × H2400 mm
Ignition Source	Propane Burner 31 kW
Power Supply	AC 220V 50Hz
Power Consumption	8.5 kW
Ambient Temperature	5～35℃
Relative Humidity	20～80% RH
Exhaust Speed	0.50～0.65 m³/s
Exhaust Duct Diameter	Φ500 mm
Temperature Measurement	K-type Thermocouple
Oxygen Measurement Range	0～25%
CO₂ Measurement Range	0～10%
Data Acquisition	Embedded PC System
Display	LCD Touch Screen / Computer Control
Test Time	1～30 minutes Adjustable

Applications

Fire-Performance Testing for a Broad Range of Building Materials

This SBI test equipment supports performance testing for multiple construction-related products:

Building Panels: Wall panels, ceiling panels, sandwich panels
Insulation Materials: Mineral wool, thermal insulation boards, composite insulation products
Construction Products: Roofing materials, decorative materials, interior finishing products

Target End-Users

Ideal for application in: Fire testing labs, certification authorities, research institutes, and building material manufacturers.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2018. We serve customers worldwide including Southeast Asia, Eastern Asia, Southern Europe, Domestic Market, Northern Europe, South Asia, North America, South America, Western Europe, Eastern Europe, Mid East, Oceania, Central America, and Africa. Our office employs 11-50 people.

How can we guarantee quality?

We always provide a pre-production sample before mass production and conduct final inspection before shipment.

What can you buy from us?

Testing Equipment, Tensile Testing Machine, Environmental Test Chamber, Fire Testing Equipment, Induction Heating Machine.

Why should you buy from us instead of other suppliers?

We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and more.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES. Accepted Payment Currency: USD, EUR, JPY, AUD, HKD, GBP, CNY, CHF. Accepted Payment Type: T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union, Cash, Escrow. Languages Spoken: English, Chinese.
