13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace

13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace

13m³ vertical furnace fire resistance testing

automatic temperature control furnace

pressure control flammability testing equipment

Brand Name:

YUYANG

Certification:

CE, ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A

Model Number:

YYF129

Contact Us
Request A Quote
13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace
Product Details
Display:
LCD
Electrode Dimensions:
Width: 5mm±0.1mm
Sealed Window Size:
100 *100 Mm
Sample Clamp Size:
150mm × 560mm
Inner Diameter:
Φ9.5±0.3mm
Total Power:
200W
Gas Supplies:
Propane And Air Compressed Air
Ignition Time Accuracy:
0.01 S
Tray:
2 Pcs Stainless Steel Trays
Timer Accuracy:
0.1s Resolution
Vacuum Degree:
-0.1MPa
Room Temperature:
40 ℃
Thermocouple Type:
K (Ni/Cr - Ni/Al)
Combustion Box Dimension:
L300 × W300 × H790 (mm)
Customized Support:
OEM, ODM, OBM, Software Reengineering
Highlight:

13m³ vertical furnace fire resistance testing

,

automatic temperature control furnace

,

pressure control flammability testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
negotiate
Packaging Details
export wooden caton
Delivery Time
30WORKDAYS
Payment Terms
L/C,D/A,D/P,T/T
Supply Ability
10 Set/Sets per Month
RELATED PRODUCTS
Good price Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control online

Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control

Get Best Price
Good price Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory online

Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory

Get Best Price
Good price 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace online

13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace

Get Best Price
Good price Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products online

Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products

Get Best Price
Contact Us
8613825728654
sales09@yuyangtest.com
86-769-26622869
Contact Now
Product Description

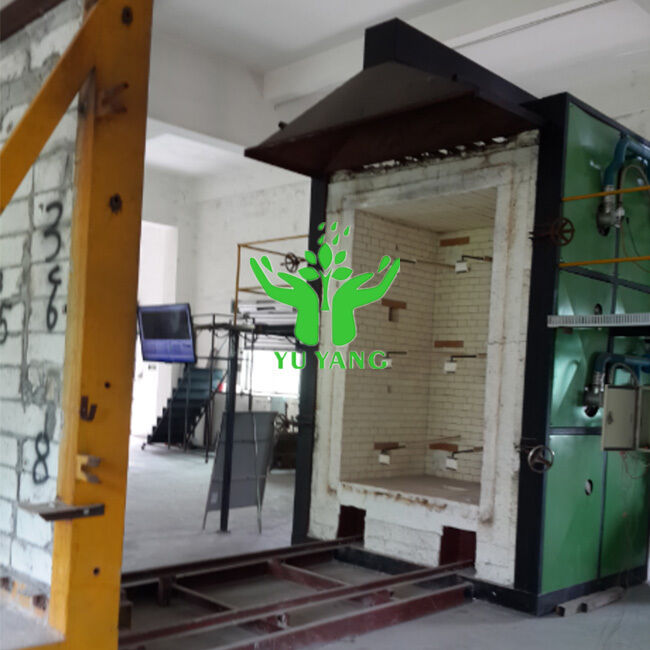

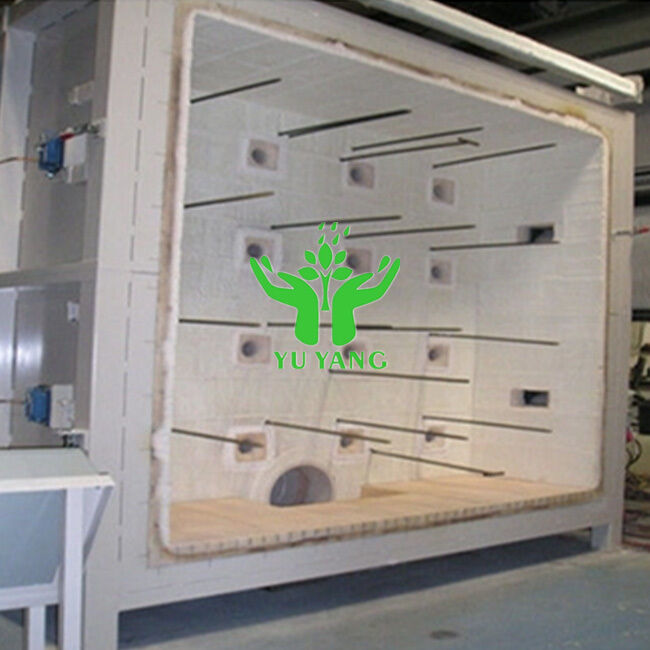

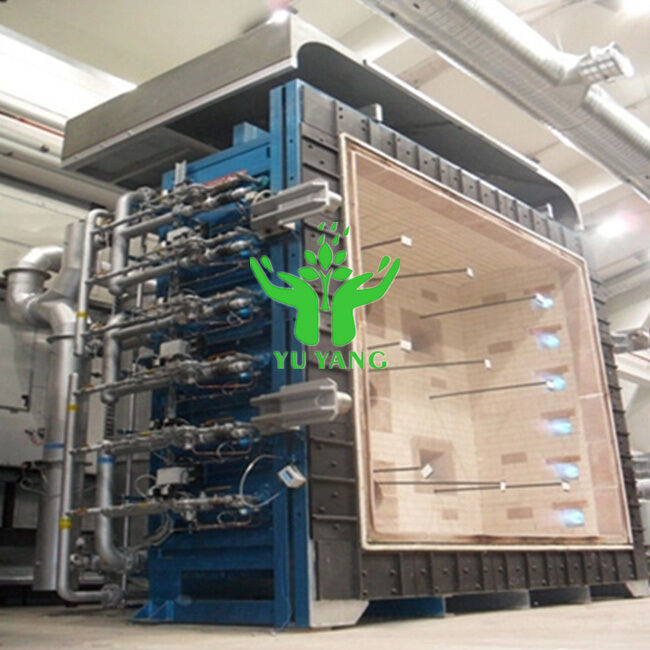

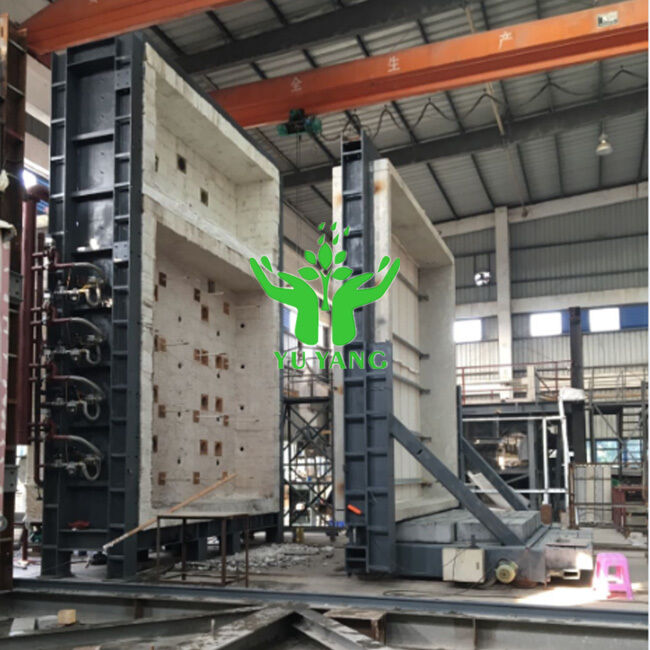

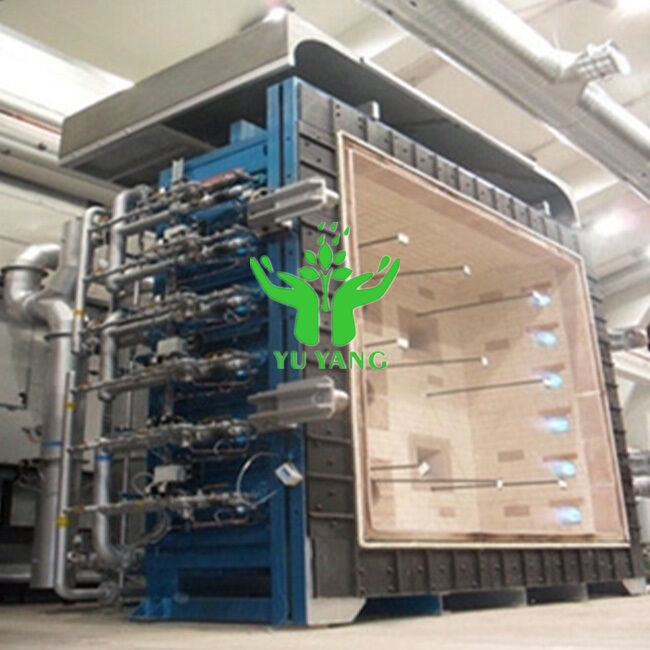

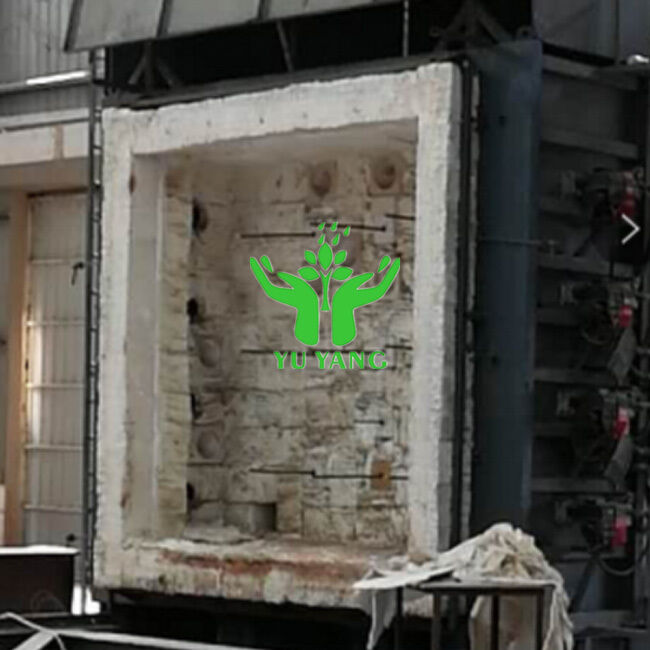

13m³ Vertical Furnace for Fire Resistance Testing
Automatic Temperature & Pressure Control Furnace for building components and construction products testing
Product Overview
The 13m³ Vertical Furnace is engineered for comprehensive fire resistance testing of building components and construction products. This advanced system features a high-temperature vertical furnace chamber with automated temperature and pressure control, multiple side-mounted high-speed burners, multi-point temperature measurement, and comprehensive safety protection systems.
Technical Specifications
Internal Volume13 m³ net
Chamber Dimensions3.0 × 4.0 × 1.2 m
Maximum Temperature1300 °C
Operating Temperature1200 °C (long-term)
Burner Configuration12 side-mounted high-speed burners
Burner Power230 kW per burner
Total Combustion Power3,220 kW
Control & Monitoring System
The furnace temperature and pressure are automatically controlled according to programmed standard curves. The system utilizes K-type thermocouples for precise furnace temperature measurement and multiple temperature measurement points on specimen surfaces. Pressure sensors and multiple pressure measurement ports ensure accurate furnace pressure monitoring and control.
Computer control software provides real-time monitoring of furnace temperature, specimen temperature, furnace pressure, burner operation, and equipment status. All test data is stored in Excel format for comprehensive analysis, reporting, and printing.
Safety System
Multiple safety protection functions ensure operational security:
  • Gas over-pressure relief system
  • Low gas-pressure alarms
  • Automatic gas shut-off during fan faults
  • Burner flame-out alarms
  • Exhaust-fan temperature alarms
  • Safety interlocks between exhaust fan, combustion fan, gas solenoid valve, and ignition system

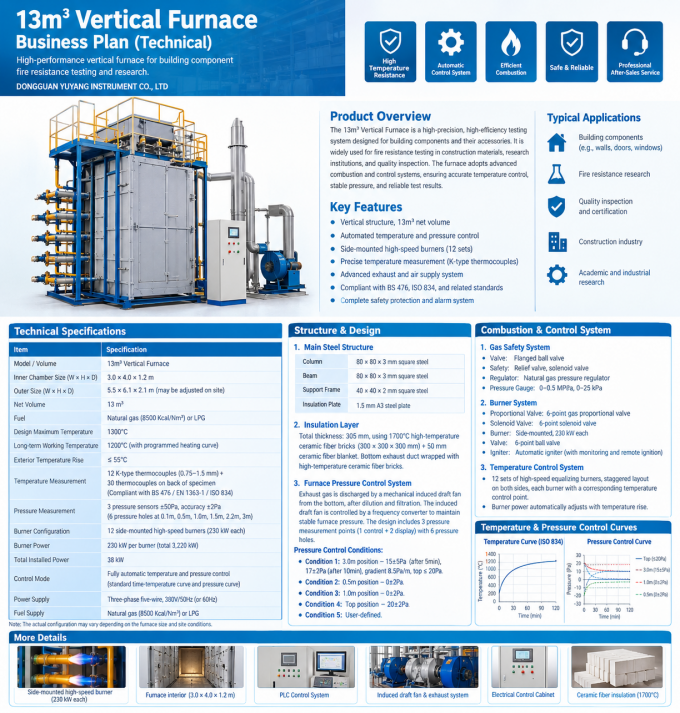

13m³ Vertical Furnace safety system and control panel
Packaging & Transportation
Professional packaging and transportation of industrial testing equipment
Company Information
Manufacturing facility and company overview
Based in Guangdong, China, established in 2018
Quality Assurance
  • Pre-production samples before mass production
  • Final inspection before shipment
Product Range
Environmental Test Chambers, Fire Testing Equipment, Tensile Testing Machines, Induction Heating Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Services Provided
Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Payment Methods: T/T, L/C, D/P, Credit Card, PayPal, Western Union, Cash, Escrow, D/A
Languages: English, Chinese
