Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products

Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products

Plastic flame test equipment

Polymer burning characteristics tester

Flammability testing machine for plastics

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF002

Contact Us
Request A Quote
Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products
Product Details
Standard:
GB/T 2408,GB/T 4610,UL94, ASTM D1929,IEC707
Test Temperature:
0~500℃
Temperature Accuracy:
± 1 ℃
Opening Diameter:
Ф25mm
Air Flow:
0~100mm/s(adjustable)
Power:
AC220V、50HZ
Dimension::
L1400*W600*H1900 (mm)
Experimental Part Of The Device Is As Follows:
The Furnace Shell, Furnace Tube, Inner Tube, Sample Disk, Heating Jacket, Insulation, Thermal, Air Source, Temperature Control Device, Automatic Ignition Device
Highlight:

Plastic flame test equipment

,

Polymer burning characteristics tester

,

Flammability testing machine for plastics

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
Negotiation
Delivery Time
15-20 work days
Payment Terms
T/T
Supply Ability
2 sets per month
RELATED PRODUCTS
Good price Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control online

Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control

Get Best Price
Good price Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory online

Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory

Get Best Price
Good price 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace online

13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace

Get Best Price
Good price Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products online

Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products

Get Best Price
Contact Us
8618938165008
sales11@yuyangtest.com
86-769-26622869
Contact Now
Product Description

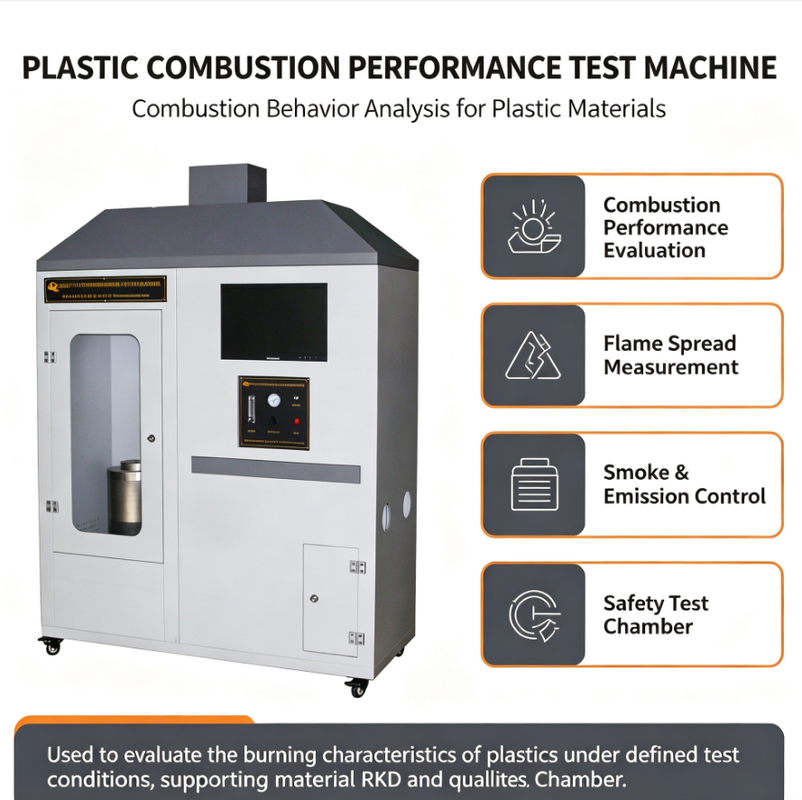

Plastic Flame Performance Test Equipment
Professional laboratory solution for analyzing the fire response of plastic materials and related products. This combustion characteristics testing machine helps manufacturers and testing institutions carry out reliable performance assessments for quality control, material comparison, and safety evaluation.

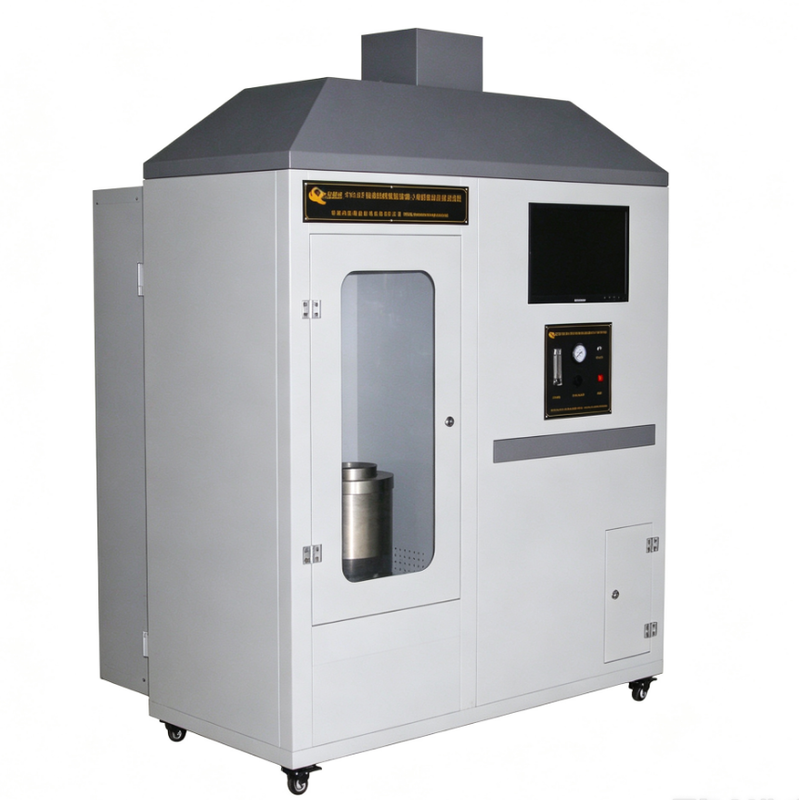

Plastic Flame Performance Test Equipment - Professional combustion testing machine for polymer products
Testing Principle
In the hot air furnace heating chamber, samples are heated at different temperatures. A small flame in the furnace directly above the opening point of escaping gas determines the flashover temperature. Auto-ignition temperature is measured using the same method but without applying a flame.

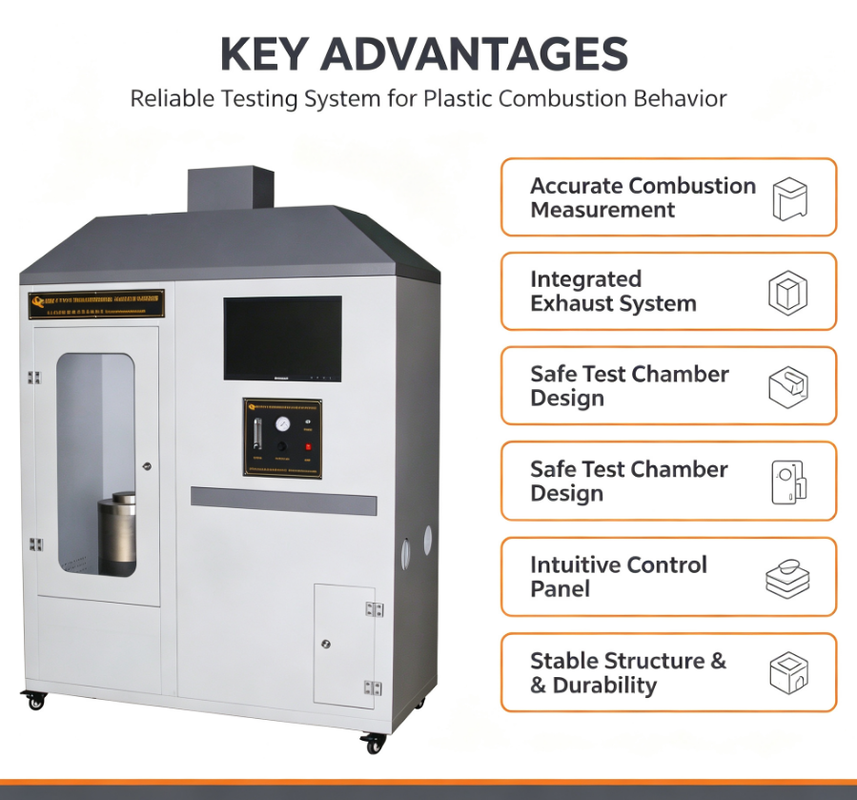

Key Advantages
  • Integrated touch-screen control panel for user-friendly operation and continuous real-time data acquisition
  • Individual sealed combustion compartment with high-temperature resistant observation window for safe visual inspection
  • Fine-tunable gas pressure and flow control system ensures stable test atmosphere
  • Embedded smoke exhaust pipeline efficiently discharges combustion waste gas
  • Advanced safety protection structure prevents high temperature hazards and flame overflow
  • Universal casters for easy transport and site adjustment
Application Fields
  • Plastic raw material factories & plastic product manufacturers
  • Electronic and electrical industry for plastic component fire resistance testing
  • Automotive interior plastic parts combustion performance detection
  • Construction building plastic materials fire safety inspection
  • Third-party testing laboratories, quality supervision institutes and research institutions
After-Sales Service
Professional After-Sales Support
We provide comprehensive after-sales service to ensure smooth installation and operation.
  • Professional operation guidance
  • Installation support
  • English operation manual
  • Remote technical assistance
Service Commitment
  • Quick response to customer inquiries
  • Professional technical support from experienced engineers
  • Lifetime technical consultation
Why Choose Us
  • Professional manufacturer with extensive export experience
  • Rich experience in laboratory testing equipment
  • Strict quality control before delivery
  • Support for customized solutions
  • Competitive factory pricing
  • Reliable global service support
