Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control
Product Overview

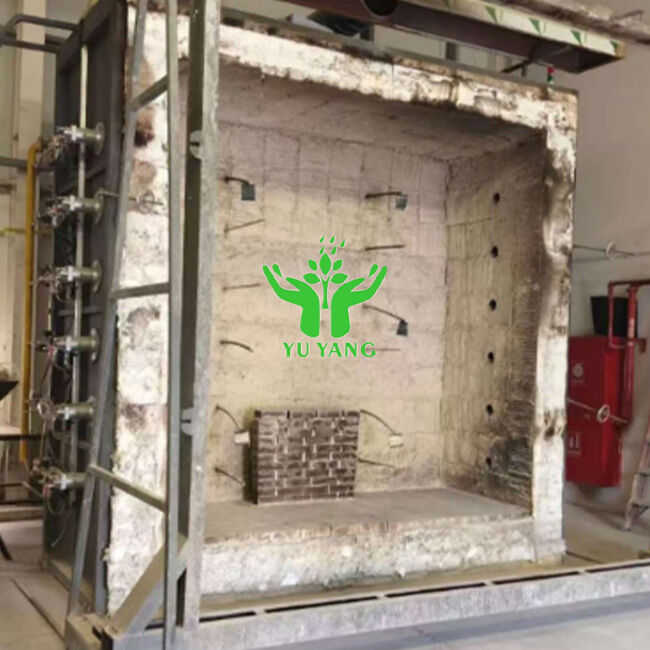

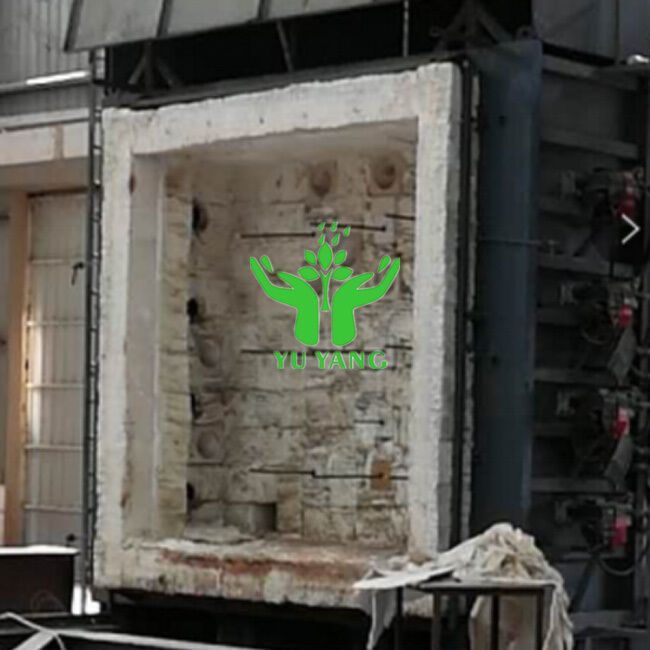

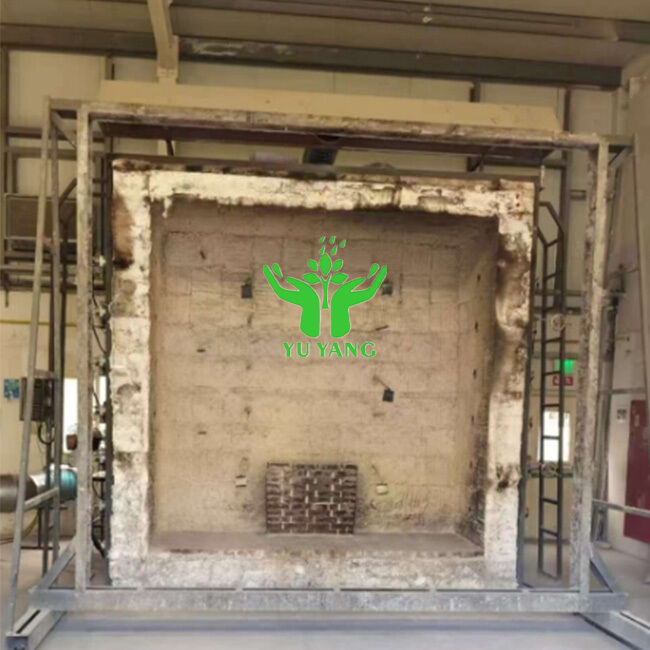

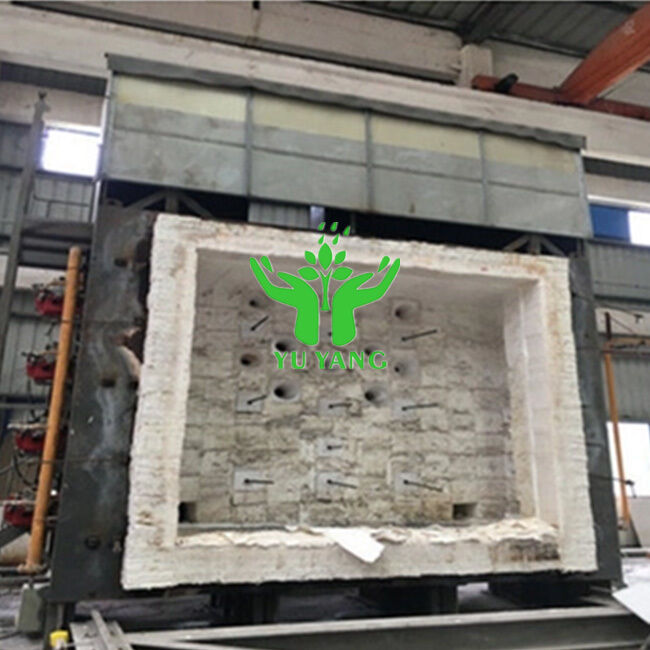

The 13m³ Vertical Furnace is engineered for comprehensive fire resistance testing of building components and construction products. This advanced system features a high-temperature vertical furnace chamber with automated temperature and pressure control, multiple side-mounted high-speed burners, multi-point temperature measurement, and comprehensive safety protection.
Technical Specifications
| Internal Volume | 13 m³ net internal volume |
| Chamber Dimensions | 3.0 × 4.0 × 1.2 m |
| Maximum Temperature | 1300 °C (design) |
| Operating Temperature | 1200 °C (long-term) |

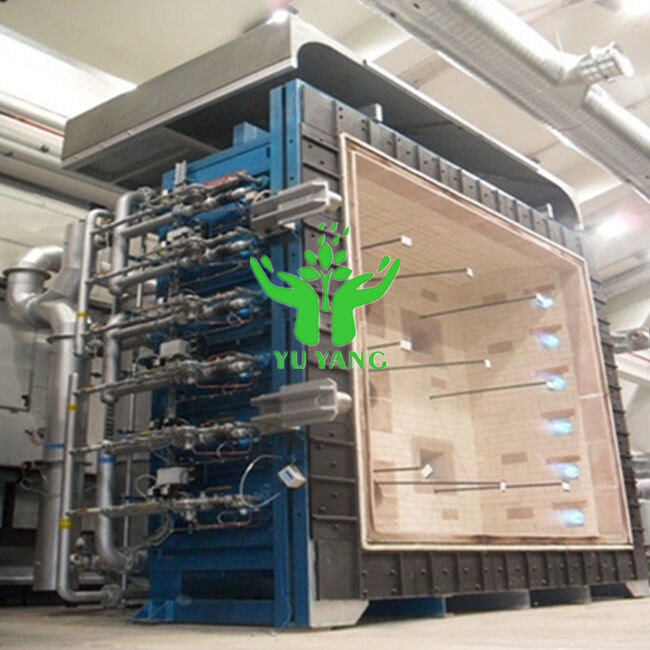

| Burner Configuration | 12 side-mounted high-speed burners |
| Burner Power | 230 kW per burner |
| Total Combustion Power | 3,220 kW |
Control & Monitoring System
The furnace temperature and pressure are automatically controlled according to programmed standard curves. The system utilizes K-type thermocouples for furnace temperature measurement and multiple temperature measurement points on the specimen's unexposed surface. Pressure sensors and multiple pressure measurement ports enable precise furnace pressure monitoring and control.
Computer Control Software
Advanced software provides real-time monitoring of furnace temperature, specimen temperature, furnace pressure, burner operation, and equipment status. All test data is stored in Excel format for comprehensive analysis, reporting, and printing.
Safety Protection System
- Gas over-pressure relief
- Low gas-pressure alarms
- Automatic gas shut-off during fan faults
- Burner flame-out alarms
- Exhaust-fan temperature alarms
- Safety interlocks between exhaust fan, combustion fan, gas solenoid valve, and ignition system
