Name: High Precision Thermal Insulation Blanket Pipe Shell Maximum Service Temperature Tester
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF022
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

High Precision Thermal Insulation Blanket Pipe Shell Maximum Service Temperature Tester

thermal insulation blanket tester

pipe shell temperature tester

flammability testing equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYF022

Request A Quote

High Precision Thermal Insulation Blanket Pipe Shell Maximum Service Temperature Tester

Product Details

Temperature Measurement System::

He Diameter Of The Thermocouple Wire Is 5.0mm, The Range Of Measurement Temperature: 0-1250 ℃; Using PLC + Module Acquisition Temperature.

Control Part::

PLC Module, Computer Control Real-time Display Hot Surface Temperature Curve, Output Test Report.

Heating Rate::

5 ℃ / Min Or 3 ℃ / Min Can Be Set

Temperature Acquisition::

Collected Once Every 2min, Together With Curve Shows.

Thermocouple Response Time::

<0.5s.

Temperature Error:

± 0.5 ℃.

Timing Error:

1s / H

Computer:

1 Set (at Least Meet With These Following Requirements: CPU: INTEL I5-III On Behalf Of The Above; Memory: 4G Or More; Hard Disk: 500G Or More; With The Serial Port: Control Equipment Operation; Display: 20 Inches Or More LED Liquid Crystal Display, 1600 *

Equipped With Flat Feet And Feeler:

Measure Warpage.

Equipped With:

Two Sample Cans.

Highlight:

thermal insulation blanket tester

pipe shell temperature tester

flammability testing equipment

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Negotiation

Payment Terms

T/T

High Precision Thermal Insulation Blanket Pipe Shell Maximum Service Temperature Tester

Get Best Price

Hot Plate & Heating Tube Type Thermal Insulation Max Service Temperature Test Equipment with PLC Computer Control

Get Best Price

Maximum Service Temperature Testing Machine for Loose Insulation, Blanket, Block, Plate & Prefabricated Insulating Tube Shell

Get Best Price

Thermal Insulation Materials Maximum Service Temperature Test Apparatus | ISO 8142 ASTM C411 Insulation Blanket Pipe Shell High Temperature Tester

Get Best Price

8618938165008

sales11@yuyangtest.com

86-769-26622869

Contact Now

Product Description

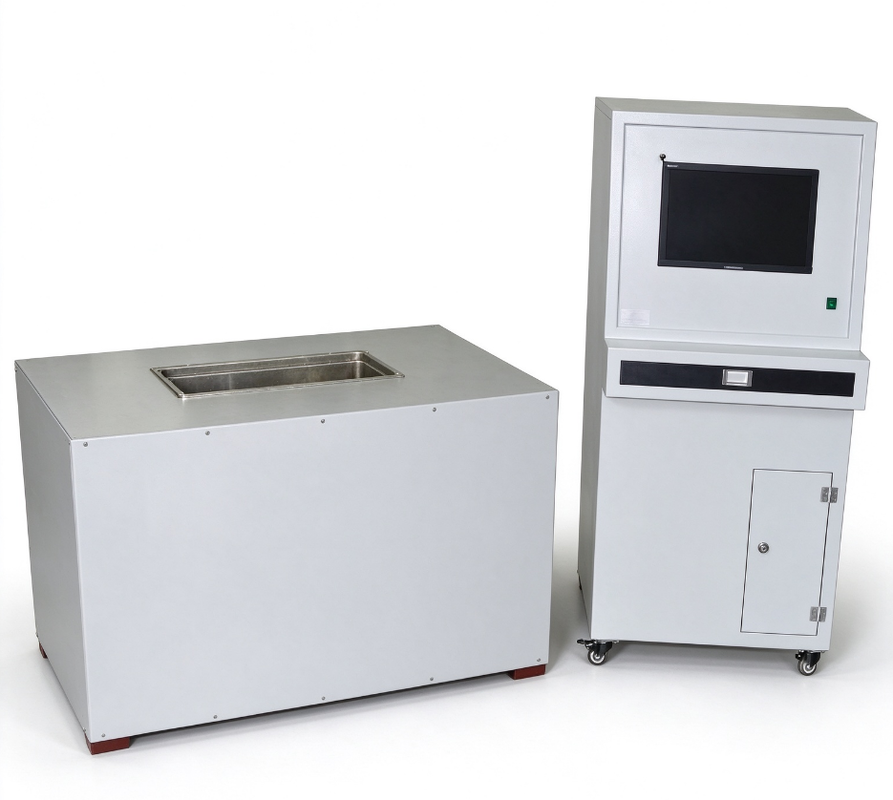

High Precision Thermal Insulation Blanket Pipe Shell Maximum Service Temperature Tester

Brief Introduction

This test apparatus evaluates the performance of thermal insulation products at their maximum service temperature. It supports loose insulation, blanket, block, plate, and prefabricated insulating tube shell samples. Equipped with a SUS304 heating plate and three sizes of heating tubes, a PLC plus computer control system, and a high-precision thermocouple measuring system, it enables real-time temperature curve display, timed data collection, and automatic test report output. The machine complies with ISO 8142, GB/T 17430, ASTM C411, and ASTM C447 standards for high-temperature performance testing of thermal insulation materials.

Advantages

Dual test station for plate samples and pipe shell samples
High-precision temperature control with small measurement error
Fast thermocouple response for stable and repeatable test results
Adjustable heating rate and automatic data acquisition
End auxiliary heating design to guarantee test accuracy
All standard accessories included for complete test work
User-friendly control software with report export function

Application Fields

Material testing laboratories, insulation material factories, the construction thermal insulation industry, industrial pipeline insulation, mineral fiber product R&D and quality inspection, and third-party thermal performance testing.

After-sales Service

12-month warranty, online remote technical service, user manual and operation video provided, spare parts supply, lifetime technical consultation, and customized service available.
