Place of Origin:
China
Brand Name:
YUYANG
Certification:
EN71-2:2006+A1:2007, GB 6675 Appendix A,ISO8124
Model Number:
YY1103

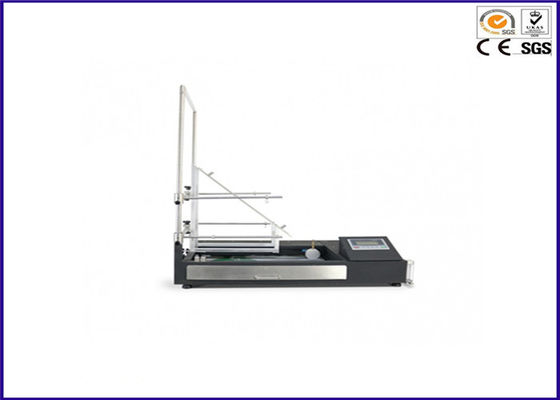

Toys Comprehensive Flammability Testting Equipment with 20mm 40mm Flame Height Gauge
Application:
En71 Toy Integrated Flammability Tester, to determine flammability resistance of finery or toy and children clothing, the toy flammability tester mainly for evaluating the burning speed and time of the following kinds of toys or children stuff.
Toys to be worn on the head, such as beards, wig and mask etc.
Toy disguise costumes and toys intended to be worn by a child in play, such as cowboy suits, nurse's outfits and long flowing capes etc.
Toys intended to be entered by a child, such as toy tents, puppet theatres, wigwams and play tunnels.
Soft filled toys (animals and dolls, etc.) with a piled or textile surface.
Flame height gauge: 20 mm, 40 mm
Standards: EN71-2:2006+A1:2007, GB 6675 Appendix A,ISO8124
Summary:
This tester was designed according to EN71-2 2011 standard, both sell to overseas and domestic market.
(1) Adopt the minimized gas cylinder system, the instrument can be moved, take up small space. The user also can connect big gas cylinder.
(2) The gas system is controlled by PLC, ignite and continue burning time are accuracy,
(3) All frames can be adjusted to meet different testing need.
Specifications:
| Ignition time set range | 0~99.99S Precision:0.01S |
| Continue burning time range | 0-999.9S precision0.1S |
| Ignition mouth size | applies to IS0 6941 standard |
| Dimension of specimen | 150mmX560mm |
| Power | AC200V 50Hz |
| Weight | 40KG |
| Gas | butane gas |
| Mercerized Marker Thread | white cotton thread, density＞50 |
| Standard | EN71-2008 |
