DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ASTM 963 ,EN71-1 2011 8.26 , ISO8124-1 5.28/29 |
| Model Number: | YY1114 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3 sets per month |
| Product Name: | Toys Testing Equipment | Usage: | Inclined Plane Device |
|---|---|---|---|
| Inclined Plane: | Imported Plate | Angle Adjustable Range: | 0-15degree |
| Oblique Plane Size: | W*L1000*1500mm | Platform Size: | 120cm*160cm |
| Dimensions: | 72x120x51cm | Weight(kg): | 84Kg |
| High Light: | sharp point tester,screw torque driver |
||

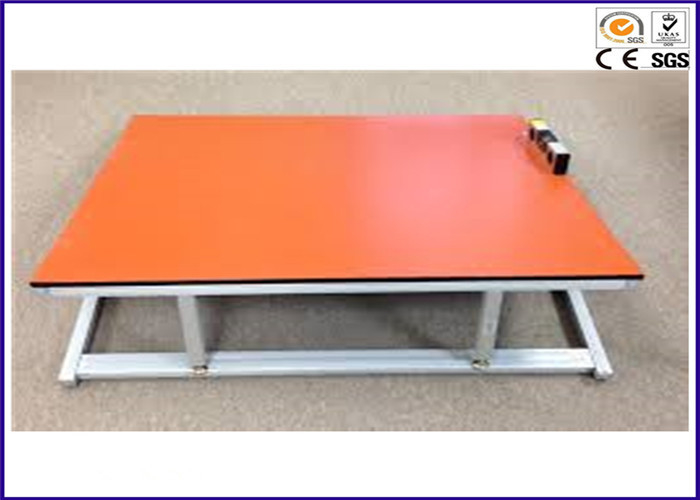

0 - 15 Degree Aluminum Frame Inclined Plane Device for Stability Test
Description:
Inclined plane device angle adjustable range: 0-15degree
Aluminum frame
Inclined plane use imported plate,19mm Fine core plate
Use P60 alumina and abrasive paper to cover the plane.
oblique plane size:W*L1000*1500mm (or specified by customer)
Applications:
Use the toys can be loaded one child weight.
Loading on the toys,which is worst standing position or seating position,
Children below 36months(including)Loading 25㎏±0.2㎏(another purchase)
Children above 36months,loading 50㎏±0.2㎏ (another purchase)
Loading on the toys,put the toys on the 10±1degree Inclined plane
If the toys can be loaded one child weight.standing or seating should be testing,to determine whether the toys will be fall down
Heavy immobile toys,put the toys on 5°±1° oblique plane,ajust removable parts position,get the worst position to test.
Specifications:
| Item | Specification |
| Tilt Angle | Max.15 degree |
| Platform Size | 120cm*160cm |
| Platform surface sand paper | 80# |
| Dimensions | 72x120x51cm |
| Weight(kg) | ≈84Kg |
Standards:
ASTM 963 ,EN71-1 2011 8.26 , ISO8124-1 5.28/29
