DONGGUAN YUYANG INSTRUMENT CO.,LTD
China Good Quality Manufacturer of Testing Equipment
 |
| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | ISO |
| Model Number: | NCF |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case |
| Delivery Time: | 50 days |
| Supply Ability: | 5 sets |
| Test Standard: | EN ISO 1182,BS 476-4,EN 13501 | Application Field: | Building Material,Rail,IMO |
|---|---|---|---|
| Size: | 530(w) * 270(D) * 280(H) | Weight: | 40Kg |
| Color: | White | Warranty: | 1 Year |
| Condition: | New | Keyword: | ISO 1182 Non Combustibility Tester |
| High Light: | smoke density test apparatus,fire test chamber |
||

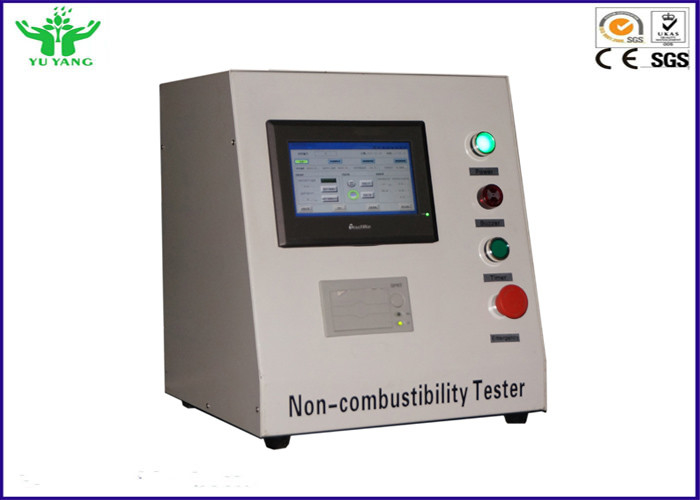

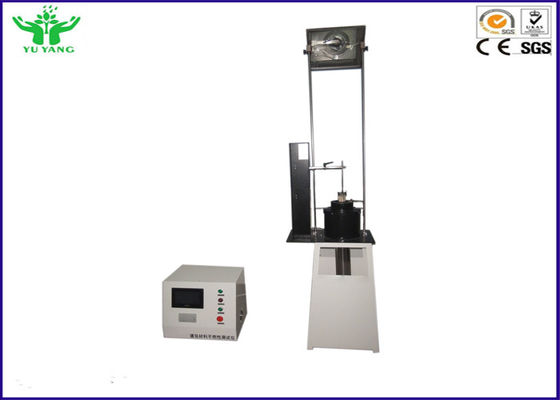

EN ISO1182 Non-Combustibility Test Apparatus
Introduction
The EN ISO 1182 Non-combustibility test apparatus is one of the series of Euroclass test standards. This test specifies a procedure for determining whether or not a material will contribute directly to fire development and is relevant to classification of all building products (including floorings) into classes A1 and A2.
Standard:
BS:BS 476-4
ISO:ISO 1182
EN:EN 13501
IMO:FTPC Part 1
Features

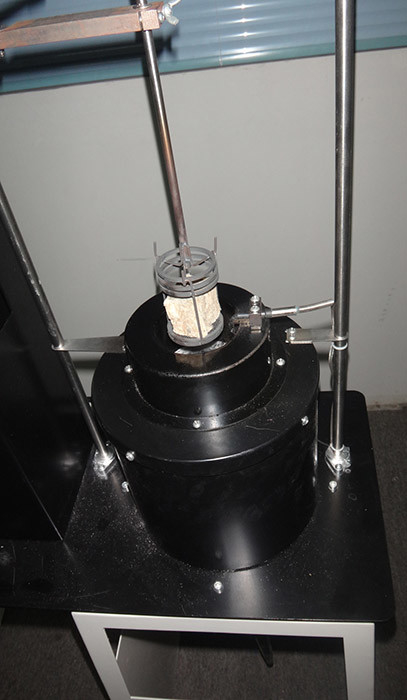

• Single Zone Furnace of this non combustibility tester is operable at up to 900 ℃ with the NIKROTHAL Ribbon Heater
• 750±5℃ temperature auto control with TPR
• Furnace equiped on ISO 1182 non combustibility test apparatus is facilitating maintenance and replacement
• Up/down automatic moving system for correct positioning of test sample is supplied with this combustibility testing equipment.
• It designs Mirror to observe the ignition quality of test sample

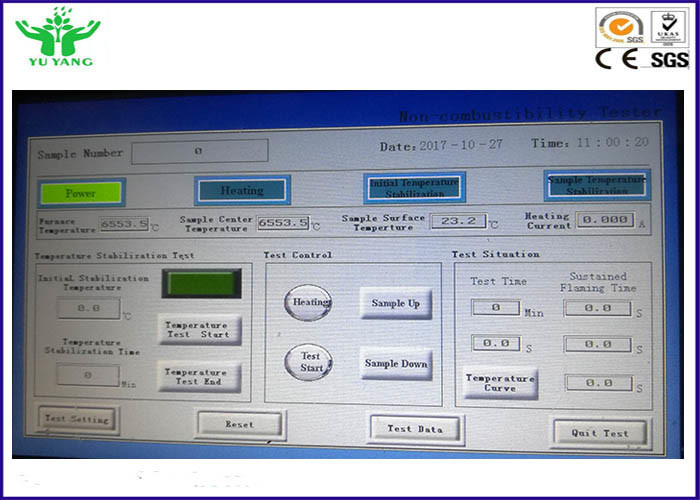

• RS 232C communication and DAQ Board-adopted interface fulfill the PC control.
• Alarm temperature-based overcurrent shut-off system is installed in the test machine for user’s safety
• Software (Non-Combusitibility 2005) to print out reports based on exact data result
Test Result
• Mass Loss(g) and Rate(%)
• Ignition Time(s) and Sustained Flaming(s)
• Initial & Maximum Furnace Temperature(℃)
• Final Furnace Temperature(℃)
• Maximum Specimen Center Temperature(℃)
• Final Specimen Center Temperature(℃)
• Furnace Temperature Rise(℃)
• Specimen Center & Surface Temperature Rise(℃)
• Differential Test Result by Standards
Installation requirements of EN ISO1182 Non-Combustibility Apparatus
| Electrical | 220 V AC, 50 Hz, 1500W |
| Dimension |
Main Unit:400(w) * 400(D) *1,270(H) Console:530(w) * 270(D) * 280(H) |
| Weight | about 40kg |
