EN-71 Sharp Point Tester Children Toys Safety Testing Equipment

Product information:

This sharp point tester is used to check whether the Children's Products like the toys have the sharp point which may hurt the children who are under 36 months.

The test equipment confirms to the standards of ASTM F963 and EN-71 as well as ST2002.

Technical parameters:

The working principle:

To make sure whether the testing point of the samples with the force of 1 pound can be inserted into the sharp pointer tester to the depth required. If the device is with a indicator light, the testing sample is proved to be with sharp point.

The instrument consist:

A main engine

A special LED (small red bulb)

A weight : 1 pound

Package: Wooden box

Sharp Point Tester Instructions:

1. Place the sharp cusp tester on the accessible cusp and check that the sharp point being tested can be inserted into the sharp tester to the specified depth. The test tip is inserted into the measuring slot and an external force of 1 lb is applied to make the indicator light, and the cusp is determined to be a sharp cusp.
2. Wood thorns in wooden toys are dangerously sharp and sharp, so they must not exist on toys.
3. The sensor head must be adjusted as required before each inspection to ensure accurate and sensitive sensing.

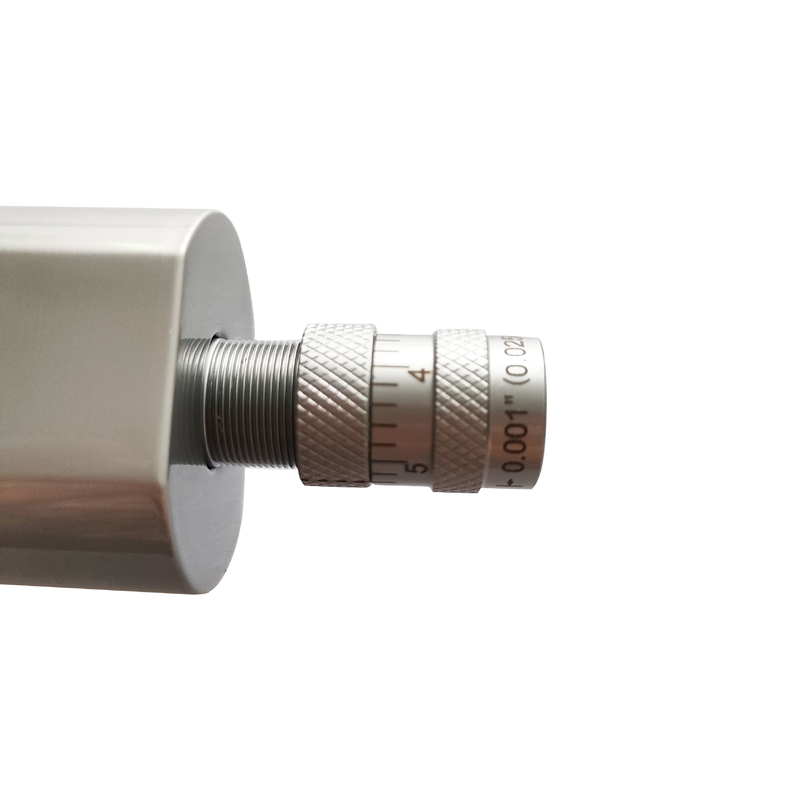

4. When adjusting the sharp cusp tester, first loosen the lock ring and then rotate the lock ring to advance the indicator device a sufficient distance to expose the calibration reference scale on the circle. Rotate the measurement cover clockwise until the indicator light flashes. Rotate the measuring cap counterclockwise until the appropriate micrometer mark matches the calibration scale, then turn the locking ring until the locking ring is against the measuring cap to secure the test cover.
