Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester

Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester

  • Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester
  • Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester
  • Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester
  • Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester
  • Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester
  • Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester
Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: BS 476-20&22, GB/T9978.1-2008
Model Number: YY006
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood box
Delivery Time: 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3 sets per quarter
Contact Now
Detailed Product Description
Smoke Density Measurement Range: 0 ~ 100% Smoke Density Measurement Accuracy: ±3%

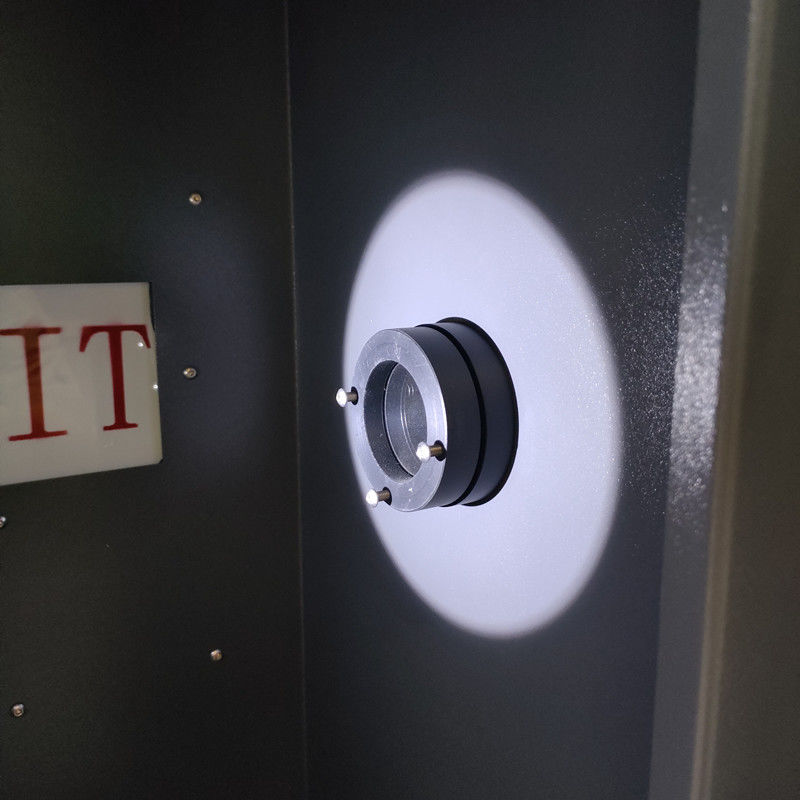

Power: Electronic Receive The Lens Focal Length: 60 ~ 65 Mm
Auxiliary Combustion Chamber Pressure: 138 Kpa (adjustable) Main Burner Work Pressure: 276 Kpa (adjustable)
Using Power: 0.5 KW Certification: CE
High Light:

138 Kpa Smoke Density Testing Machine

,

0.5 KW Smoke Density Tester

,

Building Materials Smoke Density Test Apparatus

Auxiliary Combustion Chamber Pressure 138 Kpa Decomposition Smoke Density Tester



Usage:

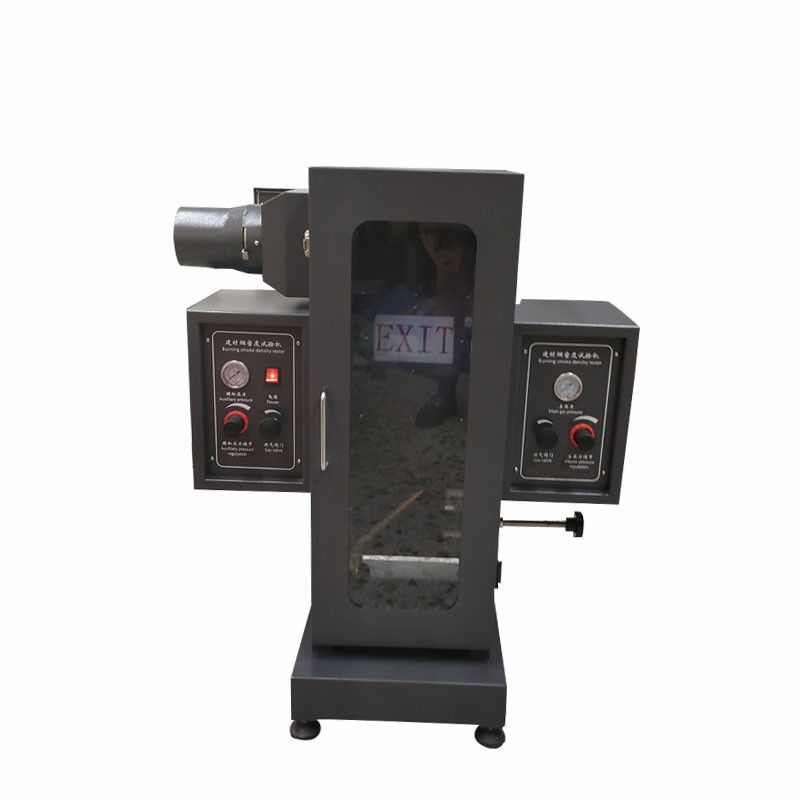

Building materials smoke density testing machine is suitable for building materials and its products and other materials burning static smoke volume measurement.



Characteristic:
The instrument is controlled by computer and consists of combustion system, photoelectric system and display and print system.
The computer automatically recorded three parallel tests, calculated the average value of smoke density measured every 15s, and summarized the integral curve of smoke density and test time, and printed the test report.
Automatic timing, automatic ignition, automatic smoke exhaust;
For the maximum smoke density (MSD) and smoke density grade (SDR) of the specimen :0-100% continuous measurement, automatic calculation and printing test results;
The correction error of standard filter is not more than 3%.
The Bunsen burner applied flame to the sample for 4min;



Technical indicators:
Smoke density measurement range :0-100%
Calibration filter specification :30%, 50%, 70% in total three pieces
Measurement accuracy ≤3%(absolute value)
Gas source: propane with purity above 85%, liquefied petroleum gas
Power supply voltage :AC220V±10%, 50Hz;
Maximum power: 0.5KW;
Smoke density measurement range :0~100%;
Smoke density measurement accuracy :±3%;
Combustion gas source :>95% propane gas;

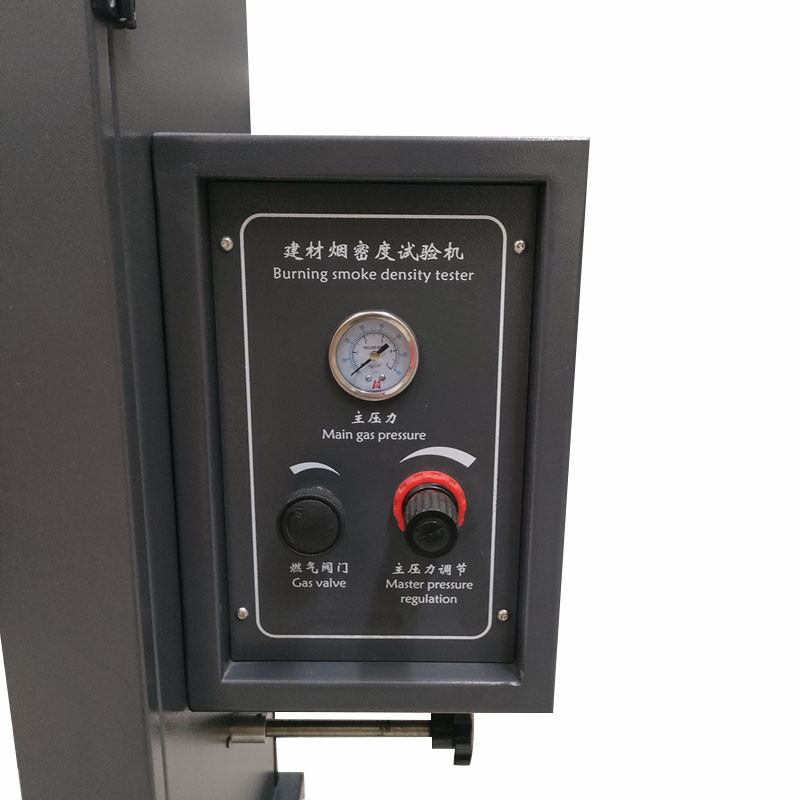

Main burner working pressure :276KPa(adjustable);
Auxiliary burner pressure :138KPa(adjustable);
Bunsen burner nozzle diameter 0.13mm, working Angle 45O;



Q: Are you a factory or a trading company?

A: We are professional testing equipment manufacturer.



Q:When can I get the price?

A: Usually we quote within 12 hours after we get your enquiry



Q: What are your Delivery terms?

A: We accept EXW, FOB, CFR, CIF, CPT. You can choose the one which is most convenient or cost effective for you.



Q: What is the payement terms?

A: T/T bank transfer, L/C, western union, we suggest your side to pay online of alibaba by credit card, and trade assurance.



Q: What about the after-sale service?

A: Guarantee period is 14 months, after the warranty, we also provide life-long paid repair orservice.



Q:What about the delivery date?

A:Usually we offer 1-2 weeks after order confirmed and payment received, and we can also accept urgent order for prompt shipment.



Q: What about the transportation?

A: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, or delivery to your office address by express courier, and we also accept to co-oper- ate with your ship agent or forwarder.



Q: What about the package?

A: Usually we offer ply-wooden cases free Fumigation, or multilayer carton boxes, inner with plastic film wrapped, or customized foam or aluminum suitcase, we will offer package pic- tures for customer reference before delivery out the goods.



Parameters

Smoke density measurement range 0 ~ 100%
Smoke density measurement accuracy ±3%
Power Electronic
Receive the lens focal length 60 ~ 65 mm
Auxiliary combustion chamber pressure 138 kpa (adjustable)
Main burner work pressure 276 kpa (adjustable)
Using power 0.5 KW
Certification CE
