Name: Vertical Fire Resistance Testing Furnace for Building Components ISO 834 BS 476
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYF129
Price: 25000.00 USD
Availability: InStock

Home > Products > Flammability Testing Equipment >

Vertical Fire Resistance Testing Furnace for Building Components ISO 834 BS 476

Vertical fire resistance testing furnace

Building components fire testing equipment

ISO 834 fire testing furnace

Brand Name:

YUYANG

Certification:

CE, ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A

Model Number:

YYF129

Request A Quote

Vertical Fire Resistance Testing Furnace for Building Components ISO 834 BS 476

Product Details

Display:

LCD

Electrode Dimensions:

Width: 5mm±0.1mm

Sealed Window Size:

100 *100 Mm

Sample Clamp Size:

150mm × 560mm

Inner Diameter:

Φ9.5±0.3mm

Total Power:

200W

Gas Supplies:

Propane And Air Compressed Air

Ignition Time Accuracy:

0.01 S

Tray:

2 Pcs Stainless Steel Trays

Timer Accuracy:

0.1s Resolution

Vacuum Degree:

-0.1MPa

Room Temperature:

40 ℃

Thermocouple Type:

K (Ni/Cr - Ni/Al)

Combustion Box Dimension:

L300 × W300 × H790 (mm)

Customized Support:

OEM, ODM, OBM, Software Reengineering

Highlight:

Vertical fire resistance testing furnace

Building components fire testing equipment

ISO 834 fire testing furnace

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiate

Packaging Details

export wooden caton

Delivery Time

30WORKDAYS

Payment Terms

L/C,D/A,D/P,T/T

Supply Ability

10 Set/Sets per Month

Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control

Get Best Price

Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory

Get Best Price

13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace

Get Best Price

Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products

Get Best Price

8613825728654

sales09@yuyangtest.com

86-769-26622869

Contact Now

Product Description

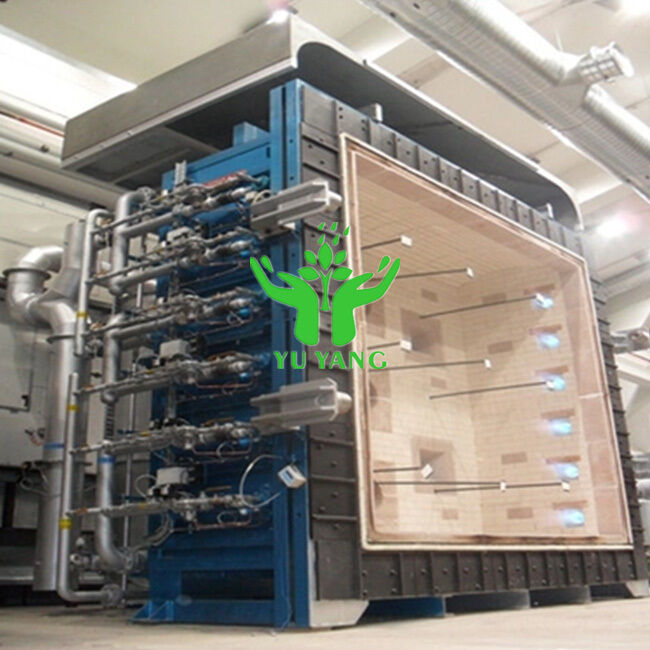

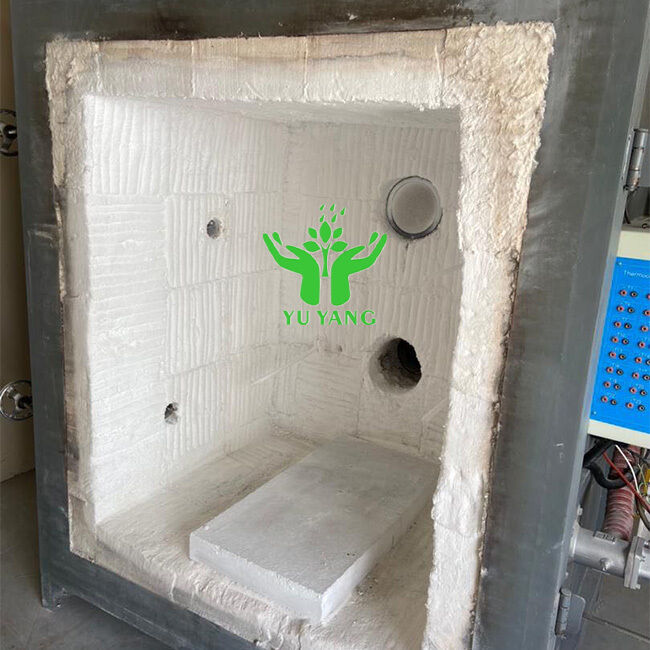

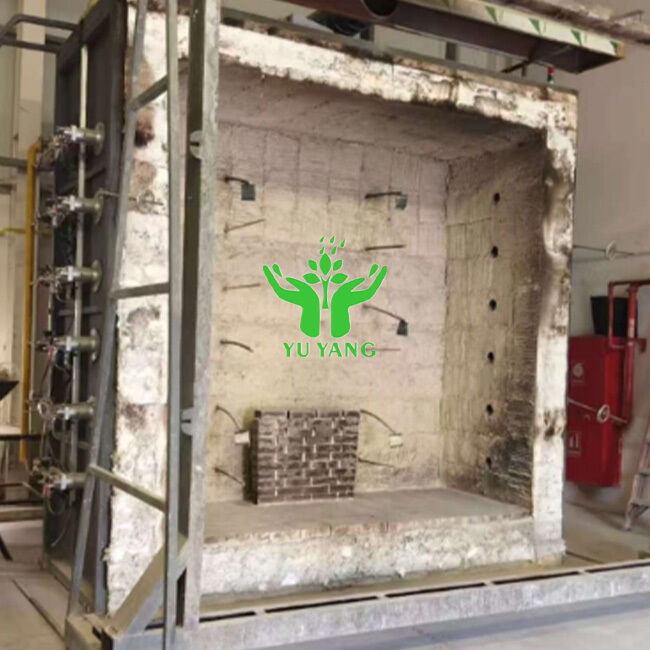

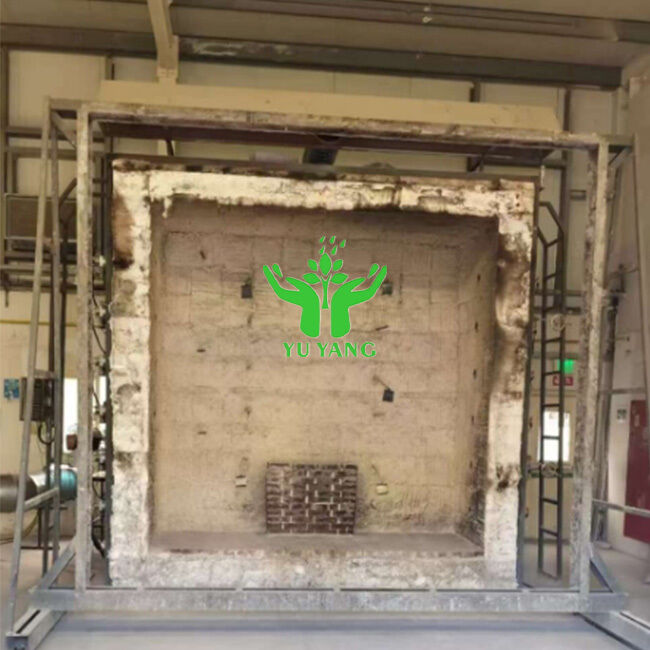

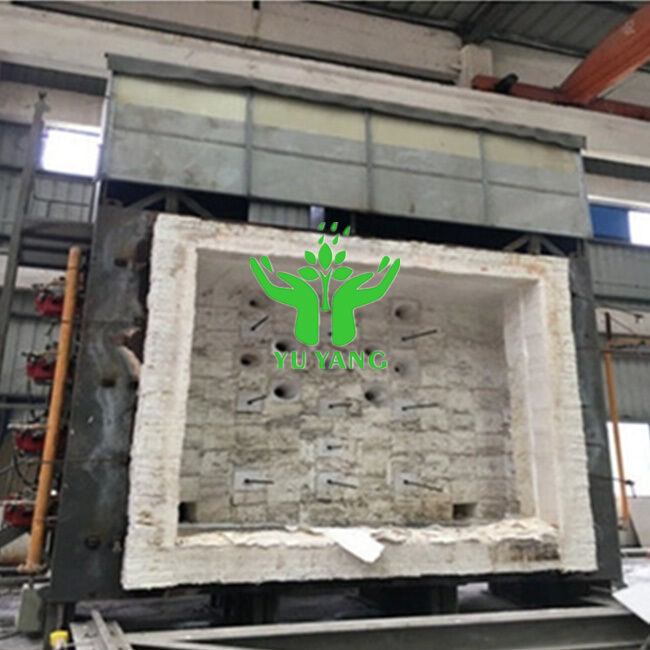

Vertical Fire Resistance Testing Furnace for Building Components

Compliant with ISO 834 and BS 476 standards for comprehensive fire resistance testing of building components and construction products.

13m³ Vertical Furnace for Fire Resistance Testing

This advanced vertical furnace system is engineered for precise fire resistance testing, featuring automated temperature and pressure control, multiple high-speed burners, and comprehensive safety systems.

Internal Volume: 13 m³ net capacity

Chamber Dimensions: 3.0 × 4.0 × 1.2 m

Maximum Temperature: 1300 °C

Operating Temperature: 1200 °C (long-term)

Combustion System

12 side-mounted high-speed burners
230 kW rated power per burner
Total combustion power: 3,220 kW
Automatic burner output adjustment based on furnace temperature

Measurement & Control Systems

K-type thermocouples for furnace temperature measurement
Multiple temperature measurement points on specimen surfaces
Pressure sensors and multiple pressure measurement ports
Computer control software for real-time monitoring
Test data export in Excel format for analysis and reporting

Safety Protection System

Gas over-pressure relief protection
Low gas-pressure alarms
Automatic gas shut-off during fan faults
Burner flame-out alarms
Exhaust-fan temperature alarms
Safety interlocks between exhaust fan, combustion fan, gas solenoid valve, and ignition system
