220 V60Hz 75 kg Rated Load 110*98 cm Testing Dimension Vibration Test Machine for Package Transport Simulation

220 V60Hz 75 kg Rated Load 110*98 cm Testing Dimension Vibration Test Machine for Package Transport Simulation

220 V60Hz Vibration Test Machine

75 kg Rated Load Transport Simulation Tester

110*98 cm Testing Dimension Package Vibration Tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-001

Contact Us
Request A Quote
220 V60Hz 75 kg Rated Load 110*98 cm Testing Dimension Vibration Test Machine for Package Transport Simulation 220 V60Hz 75 kg Rated Load 110*98 cm Testing Dimension Vibration Test Machine for Package Transport Simulation 220 V60Hz 75 kg Rated Load 110*98 cm Testing Dimension Vibration Test Machine for Package Transport Simulation 220 V60Hz 75 kg Rated Load 110*98 cm Testing Dimension Vibration Test Machine for Package Transport Simulation
Product Details
Model:
0~99.99hour Carton Transportation Vibration Test Equipment For Package GB / T 4857.7-92
Rated Load:
75 Kg
Testing Dimension:
110*98 Cm
Maximum Acceleration:
1.25g
Frequency:
Frequency Of 2-5 Hz Continuously Adjustable
Amplitude:
25.4MM(1 Inch)
Power:
220 V60Hz
Motor:
Rotary DC Motor
Fence Height:
33 Cm,38 Cm,42 Cm
Dimension:
20×110 Cm
Weight:
169 Kg
Highlight:

220 V60Hz Vibration Test Machine

,

75 kg Rated Load Transport Simulation Tester

,

110*98 cm Testing Dimension Package Vibration Tester

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1999
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Payment Terms
L/C,D/A,T/T,D/P
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control online

Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control

Get Best Price
Good price Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory online

Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory

Get Best Price
Good price 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace online

13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace

Get Best Price
Good price Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products online

Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description

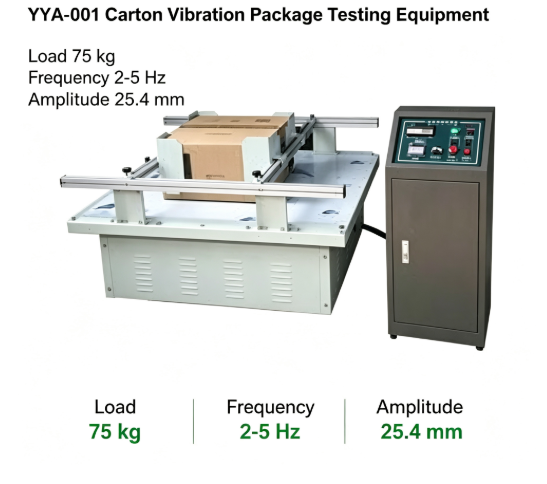

YYP-001 Carton Transportation Vibration Test Machine
Product Overview

Package Transport Simulation Vibration Tester for Carton Box designed to simulate real-world transportation conditions and evaluate packaging durability.

YYP-001 Carton Transportation Vibration Test Machine
Technical Description

This test equipment is manufactured based on United States and European transport standards, with improvements over similar American equipment. The system utilizes eccentric bearings to generate rotating elliptical trajectories that simulate vibration and collision experienced by goods during road or sea transport.

The test platform is fixed on eccentric bearings. When these bearings rotate, the entire platform plane produces oval-shaped movement in upward, downward, forward, and rearward directions. Adjusting the rotation speed of the eccentric shaft corresponds to simulating different vehicle or vessel speeds.

Main Features
  • Digital instrument display for vibration frequency monitoring
  • Synchronous belt transmission for quiet operation with very low noise
  • Clamping rail type test item mounting for easy operation and safety
  • Heavy-duty channel steel base with anti-vibration pads for stable installation
  • Smooth operation without requiring ground pin screw installation
  • DC motor speed control for smooth running and strong load capability
  • Rotary vibration (commonly known as Valley-type) operation
Compliance Standards
  • GB/T 4857.7-92 "Transport Package Fixed-Frequency Sinusoidal Vibration Test Method"
Application Industries

Package Lab Vibration Shaking Test Equipment applies to various industries including:

  • Toys
  • Electronics
  • Furniture
  • Gifts
  • Ceramics
  • Packaging products

Ideal for simulating transport tests that comply with United States and European transport standards.

Vibration test machine in operation
