Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging

Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging

130*120 cm Testing Dimension Rotary Vibration Test Table

25.4MM Amplitude Carton Packaging Vibration Testing Equipment

2-5 Hz Adjustable Frequency Transportation Vibration Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

ISO

Model Number:

YYP-001

Contact Us
Request A Quote
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Product Details
Model:
0~99.99hour Carton Transportation Vibration Test Equipment For Package GB / T 4857.7-92
Rated Load:
150 Kg
Testing Dimension:
130*120 Cm
Maximum Acceleration:
1.25g
Frequency:
Frequency Of 2-5 Hz Continuously Adjustable
Amplitude:
25.4MM(1 Inch)
Power:
220 V60Hz
Motor:
Rotary DC Motor
Fence Height:
33 Cm,38 Cm,42 Cm
Dimension:
140×130 Cm
Weight:
288 Kg
Highlight:

130*120 cm Testing Dimension Rotary Vibration Test Table

,

25.4MM Amplitude Carton Packaging Vibration Testing Equipment

,

2-5 Hz Adjustable Frequency Transportation Vibration Testing Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
1999
Packaging Details
Standard Wooden Case
Delivery Time
10 days
Supply Ability
15 sets per month
RELATED PRODUCTS
Good price Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control online

Large Scale Vertical Fire Resistance Test Furnace with Automatic Temperature Control

Get Best Price
Good price Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory online

Industrial Plastic Fire Resistance Testing Machine Combustion Behavior Tester for Research Laboratory

Get Best Price
Good price 13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace online

13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace

Get Best Price
Good price Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products online

Plastic Flame Performance Test Equipment Burning Characteristics Testing Machine for Polymer Products

Get Best Price
Contact Us
8613825729462
sales03@yuyangtest.com
86-769-26622869
Contact Now
Product Description
Rotary Vibration Test Table | Carton Packaging Transportation Vibration Testing Equipment GB/T4857.7

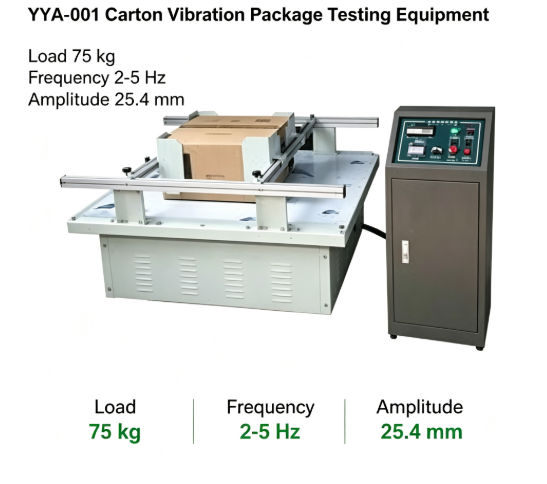

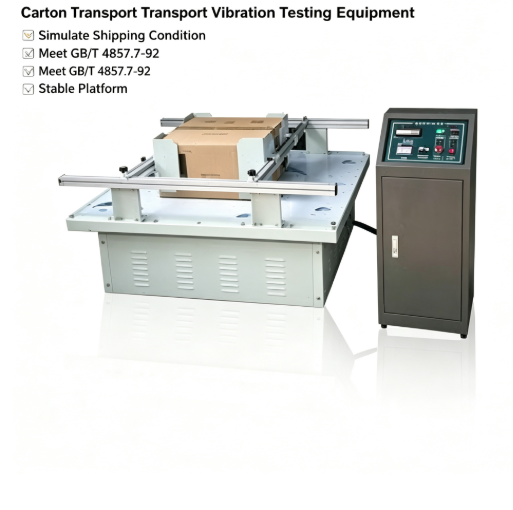

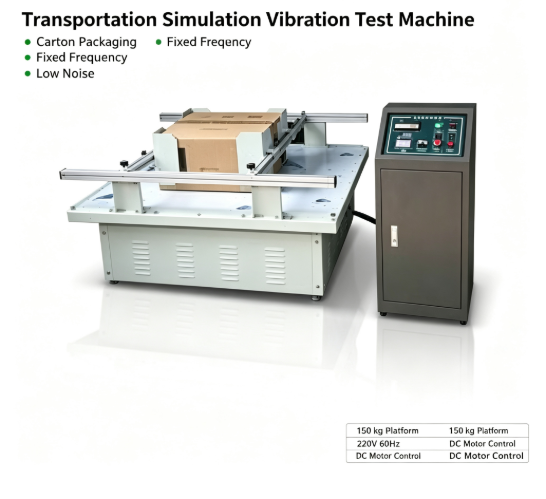

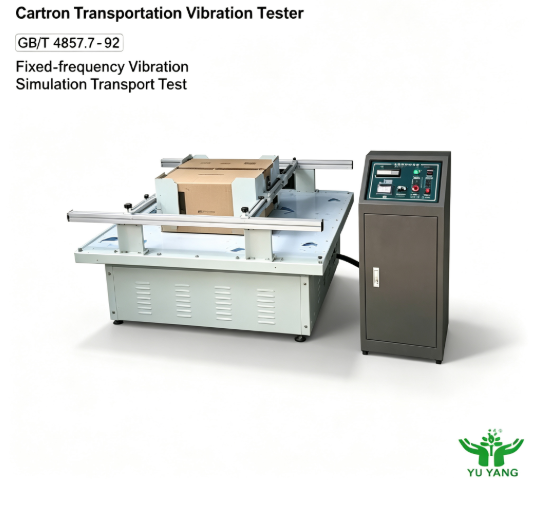

Rotary Vibration Test Table equipment overview Rotary Vibration Test Table detailed view
Product Description

This vibration test equipment is manufactured based on United States and European transport standards, with improvements made by referencing similar American equipment. It utilizes eccentric bearings to generate rotating elliptical trajectories that simulate the vibration and collision experienced by goods during transportation by car or ship.

The test platform is fixed on eccentric bearings. When these bearings rotate, the entire test platform plane produces elliptical-shaped movements in upward, downward, forward, and backward directions. Adjusting the rotation speed of the eccentric shaft corresponds to adjusting the speed of motor vehicles or vessels.

Main Features
  • Digital instrument display for vibration frequency monitoring
  • Synchronous belt transmission with mute operation and very low noise
  • Test items secured using clamping rail system for easy operation and safety
  • Heavy-duty channel steel base with anti-vibration pads for easy installation
  • Smooth operation without requiring ground pin screw installation
  • DC motor speed control for stable running and strong load capability
  • Rotary vibration operation (commonly known as Valley-type)
Standards Compliance
  • GB/T 4857.7-92 "Transport Package Fixed-Frequency Sinusoidal Vibration Test Method"
Applications

This Package Lab Vibration Shaking Test Equipment applies to various industries including:

  • Toys
  • Electronics
  • Furniture
  • Gifts
  • Ceramics
  • Packaging products

It simulates transport tests and complies with United States and European transport standards.
